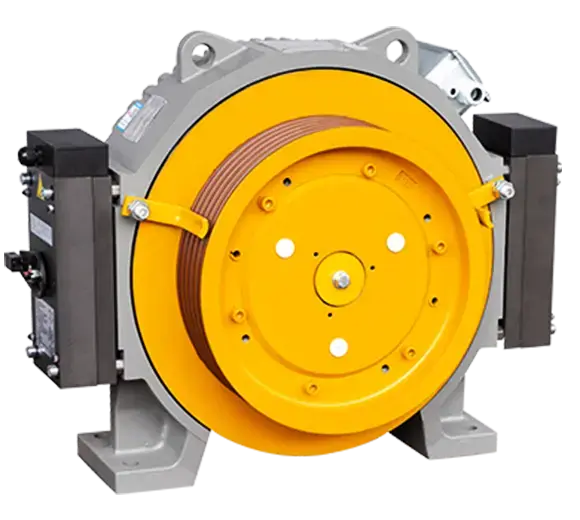

Torin Drive Traction Machine | TorinDrive GTW9S

Torin Drive GTW9S | Torin Drive Traction Machine

Model: GTW9S

Specifications:

Feature

Specification

Speed Range

1.0–2.0 m/s

Load

630–1150 kg

Power Range

4.2–15.3 kW

Weight

315KG

Pole

Rating

S5 (40%)

Suspension

2 : 1

Catalog

Send Inquiry

Product Details

Torin Drive Traction Machine | TorinDrive GTW9S

TorinDrive Traction Machine is a cutting-edge, gearless Permanent Magnet Synchronous Motor (PMSM) engineered for elevators in residential, commercial, and high-rise buildings. It delivers 40% higher energy efficiency versus traditional motors through regenerative braking and electromagnetic optimization.

Specifications:

Feature	Specification
Speed Range	1.0–2.0 m/s
Load	630–1150 kg
Power Range	4.2–15.3 kW
Weight	315KG
Pole	32
Rating	S5 (40%)
Suspension	2 : 1

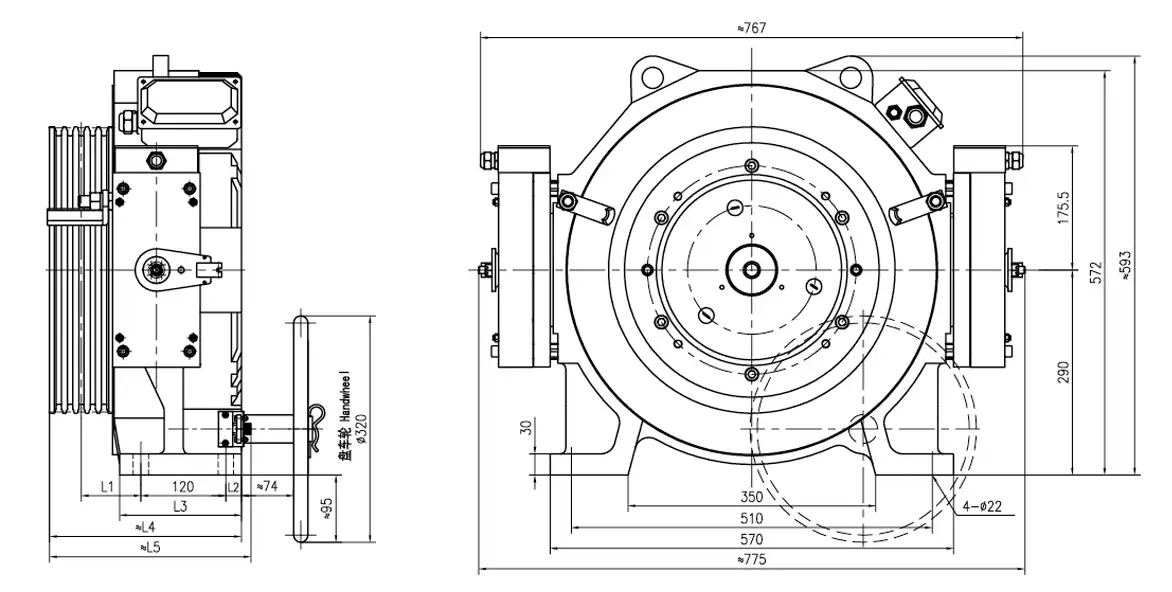

Dimensions:

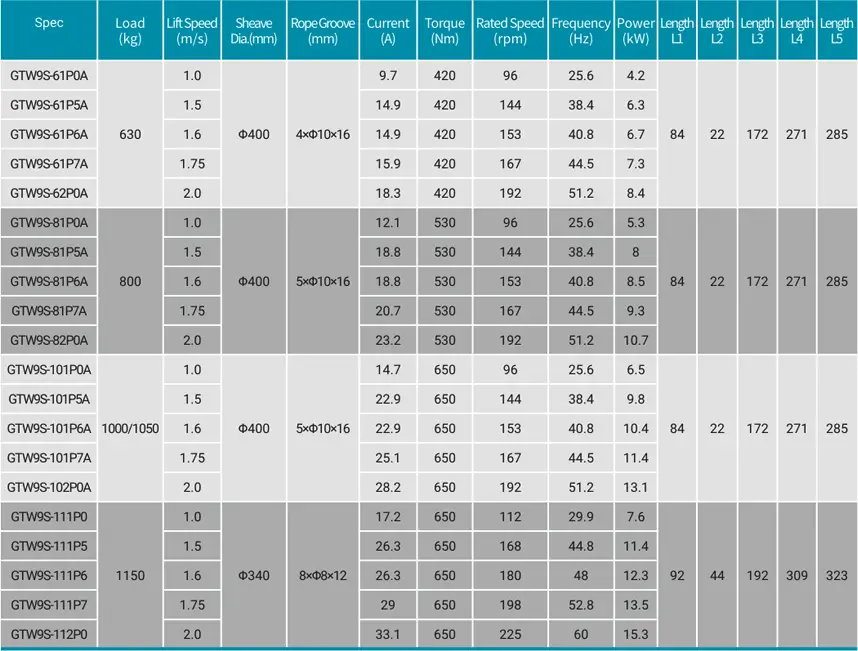

Technical Data:

Q/A: Elevator Industry Insights

What is a traction machine in an elevator? +

A traction machine is the core electric drive system in modern elevators, responsible for moving the elevator car and counterweight by applying rotational force (torque) to the sheave (pulley). Here's a clear breakdown of its role and mechanics.

What is the difference between a gearless motor and a traction motor? +

A "traction motor" refers to a motor designed to provide motion via friction (traction) between a wheel/rope and a surface. On the other hand A "gearless motor" describes a motor without a gearbox between its rotor and the driven load. It uses direct drive technology.
